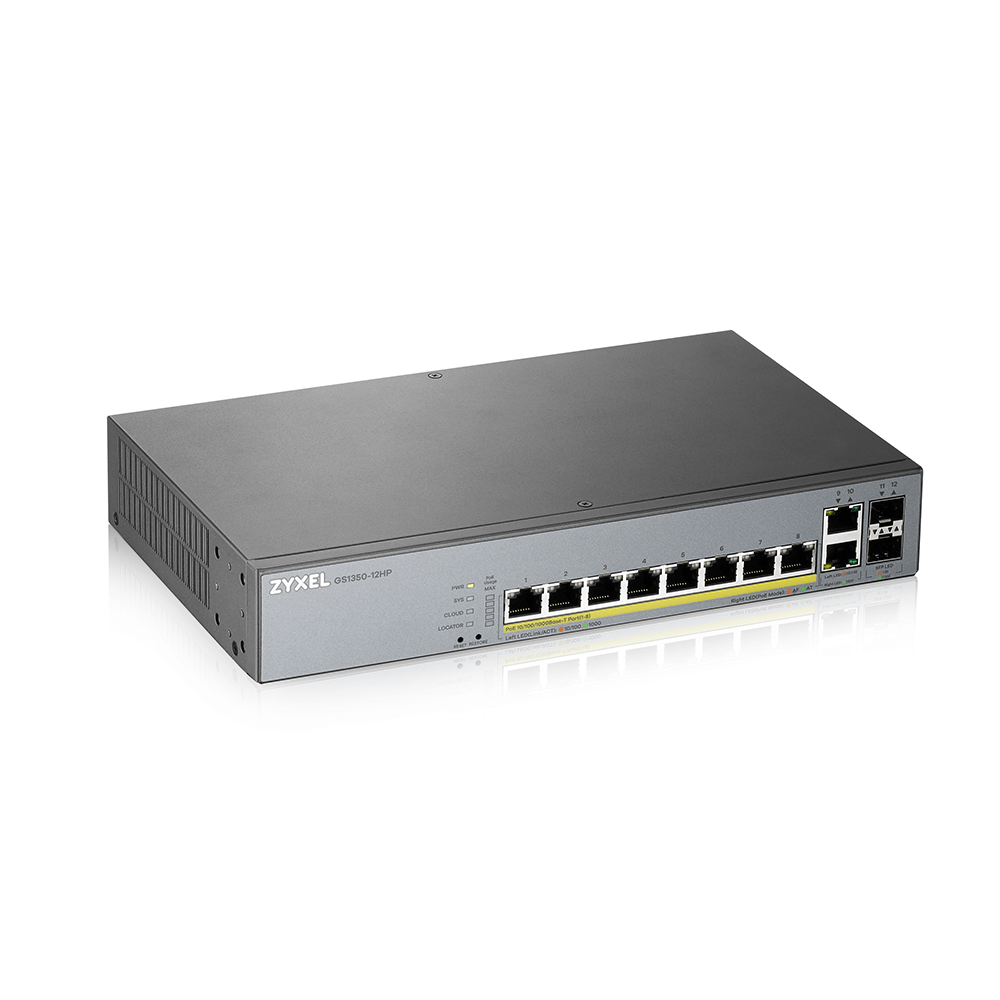

ZYXEL GS1350-12HP 8-port GbE Smart Managed PoE Switch with GbE Uplink, 130W

ZYXEL GS1350-12HP 8-port GbE Smart Managed PoE Switch with GbE Uplink, 130W

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

Just For Surveillance

Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications

Design Just For Surveillance

New outlook

Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.

New outlook

Specialized PoE software features for surveillance

Auto Camera Recovery

Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.

Continuous PoE

Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.

PoE Software

Easy for long-distance deployment

Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

Long Distance Deployment

High power budget, intuitive front panel design

The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations.

High PoE budget

Unique hardware, robust design

Stabilized power

Filters electrical noise and surge to ensure supplying stable power to PoE and the system.

Selected power supply

2X Surge and ESD protection.

Isolated Circuit Design

Provides protection to isolate power surges from Ethernet and power supply.

Intelligent System Monitor

Keeps the system operational from anomalies.

Patented Ethernet Protection
  • 4X Surge protection.
  • 2X ESD resistant.


Item Features
Standard Compliance
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-Tx Ethernet
  • IEEE 802.3ab 1000Base-T Ethernet
  • IEEE 802.3z 1000 Base-X
  • IEEE 802.3x flow control
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE plus
  • IEEE 802.3bt (GS1350-6HP)
  • IEEE 802.3az EEE support / Green Ethernet
  • IEEE 802.1p CoS support
Resilience and Availability
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.3ad LACP (Max # Trunks/Links per Trunk):
    • GS1350-6HP: 3/6
    • GS1350-12HP: 6/8
    • GS1350-18HP: 8/8
    • GS1350-26HP: 8/8
  • Loop guard
  • Dual configuration files
  • Dual images
Traffic Control
  • 802.1Q Static VLANs: 256
  • Port-based VLAN
  • Voice VLAN
  • MAC-based VLAN
  • Vendor ID based VLAN
  • VLAN Trunking
  • LACP algorithm of source/destination IP
  • Layer 2 MAC filtering
  • Static MAC forwarding
  • SSH v2
  • SSL
  • Port isolation
  • CPU protection
  • SHA2 HTTPS Certification
  • Login authentication by RADIUS
  • RADIUS accounting
  • Authorization on RADIUS
  • Multiple RADIUS servers
  • DHCP Snooping
Quality of Service (QoS)
  • 802.1p queuing methods: SPQ, WRR, WFQ
  • Storm control: broadcast, multicast, unknown unicast (DLF)
  • Port-based rate limiting (ingress/egress)
  • 802.3x flow control
  • 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
  • DiffServ (DSCP)
Layer 2 Multicast
  • L2 Multicast
  • Static L2 Multicast Forwarding
  • IGMP snooping (v1,v2,v3)
  • IGMP snooping normal leave
  • IGMP snooping fast leave
  • Configurable IGMP snooping timer and priority
  • IGMP snooping statistics
  • IGMP throttling
  • IGMP filtering
  • IGMP querier mode
  • IGMP proxy mode & snooping mode selection
  • SNMP v1,v2c, v3
  • SNMP trap group
  • RMON (1,2,3,9)
  • ICMP echo/echo reply
  • Syslog
  • Display port utilization
  • IEEE 802.1AB LLDP
  • Custom default
PoE Management
  • Power-up mode selection
  • Scheduled PoE
  • Neighbor PD detection
  • Auto PD recovery
  • Continuous PoE
  • Extended range*
  • PoE consumption/classification modes
  • Port PoE Priority
  • Customizable maximum power per port
  • PoE Wide range detection
  • LLDP-Power via MDI
* Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
IPv6 Management
  • IPv6 over Ethernet (RFC 2464)
  • IPv6 addressing architecture (RFC 4291)
  • Dual stack (RFC4213)
  • ICMPv6 (RFC4884)
  • Path MTU (RFC 1981)
  • Minimum Path MTU size of 1280 (RFC 5905)
  • Encapsulation for maximum PMTU size of 1500
  • Neighbor Discovery (RFC4861)
Device Management
  • Web interface
  • Setup Wizard
  • Full managed CLI through Telnet/SSHv2
  • Management through Web, SNMP
  • Remote firmware upgrade by FTP/Web
  • Configuration saving and retrieving
  • Configure clone
  • DHCP client
  • DHCP relay per VLAN
  • Daylight saving
  • NTP (IPv4/IPv6)
  • Port mirroring
  • Restore to last custom default
  • Zyxel private common MIB
  • RFC 1066 TCP/IP-based MIB
  • RFC 1213, 1157 SNMPv2c/v3 MIB
  • RFC 1493 bridge MIB
  • RFC 1643 Ethernet MIB
  • RFC 1757 RMON group 1,2,3,9
  • RFC 2011, 2012, 2013 SNMPv2 MIB
  • RFC 2233 SMIv2 MIB
  • RFC 2358 Ethernet-like MIB
  • RFC 2674 bridge MIB extension
  • RFC 2819, 2925 Remote Management MIB
  • RFC 3621 Power Ethernet MIB
  • RFC 4293 Management Information Base (MIB) for IP
  • RFC 4292 IP forwarding table MIB
  • RFC 4022 management information base for transmission control protocol
  • RFC 4113 management information base for user datagram protocol
Zyxel One Network

ZON Utility

  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations:
    • IP configuration
    • IP renew
    • Device factory reset
    • Device reboot
    • Device locating
    • Web GUI access
    • Password configuration
    • One-click quick association with Zyxel AP Configurator (ZAC)
  • Automatic detection of the latest firmware
  • Displays device serial number and hardware version
  • Cloud mode on/off option for Hybrid series devices

Smart Connect

  • Discover neighboring devices
  • One-click remote management access to the neighboring Zyxel devices
  • Reset neighboring devices remotely to factory defaults
  • Power cycle neighboring powered devices (PoE switches only)
  • EMC:
    • CE, FCC, C-Tick, Class A
    • BSMI CNS13438
  • Safety:
    • LVD EN62368-1
    • BSMI CNS14336-1
  • RoHS compliant
Installation Features
  • Ethernet port lightning surge protection
  • Power supply lightning surge protection
  • ESD(electrostatic discharge) protection
  • Extended range of up to 250 meters*
    • Fixed link speed at 10 Mbps
    • Limited to PDs and cameras
* Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
Limited life-time warranty

Warranty terms, service availability, and service response times may vary from country or region to country or region.



Resources & Downloads


GS1350 Datasheets
