Milesight

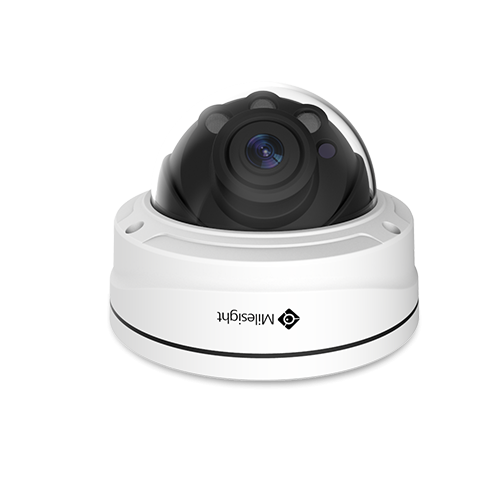

Milesight MS-C4472-RFIPE-3610 (NDAA) 4MP, 4K, Super WDR, IR50, Minidome, AI, IP Camera, 3.6mm-10mm
Milesight MS-C4472-RFIPE-3610 (NDAA) 4MP, 4K, Super WDR, IR50, Minidome, AI, IP Camera, 3.6mm-10mm
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- NDAA Compliance
- P-Iris (Providing a clearer scene with depth)
- 4K
- 1/1.8” 4 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 50Hz: 25fps@(3840x2160)/60Hz: 30fps@(3840x2160)
- WDR (140 dB Super), Day/Night (ICR)
- BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
- Built-in Microphone
- Motorized lens 3.6–10 mm@1.4
- FOV: 96°-42°
- Max. IR LEDs Length 50 m
- Micro SD/SDHC/SDXC memory (256GB)
- Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- IP67, IK10, -40℃-60℃
Downloads & Resources
Specifications
Camera | |
Image Sensor | 1/1.8” 4 Megapixel progressive scan CMOS |
Minimum Illumination | Color: 0.002Lux@F1.4 B/W: 0Lux with IR on |
WDR | 140dB Super WDR |
Shutter Time | 1/100000s-1s |
IR Distance | Up to 50 m |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
S/N | >55dB |
Lens | |
Lens Type | Motorized 2.7-13.5mm@F1.4 |
P-Iris | Yes |
Field of View | H96°~H42°/D111°~D48°/V55°~V23° |
Mount | Φ14 |
Focus Control | Auto/Manual |
Iris Control | Auto/Manual |
Video | |
Max. Image Resolution | 2688x1520 |
Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240) |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
ROI | Up to 8 areas |
Image Setting | Brightness/Contrast/Saturation/Sharpness |
Interface | |
Ethernet | 1*RJ45 10M/100M Ethernet Port |
Audio | Built-in Microphone |
Network | |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
Audio | |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/48KHz |
Audio Bit Rate | 16~256kbps |
Intelligent Analytics | |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
System | |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
SIP/VoIP Support | Yes, Voice & Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc |
Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
System Compatibility | ONVIF Profile G & Q & S & T, API |
General | |
Working Temperature | -40℃-60℃ |
Working Humidity | 0-90% (Non-condensing) |
Power Supply | PoE (802.3af) / DC 12V±10% |
Power Consumption |
6W MAX 8W MAX (With IR on)
|
Housing | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance |
Weight | 1100g |
Dimensions | Φ143mmX108.4mm |
