This catalogue presents selected camera groups, accessories and IoT families. A family may group several variants; this is not an exhaustive list of every Milesight model.
01 / Video surveillance 02 / Milesight IoT Panoramic cameras ↓ Dome cameras ↓ Bullet cameras ↓ PTZ and traffic ↓ Solar power and accessories ↓ Panoramic cameras MS-C5365-PE MILESIGHT / Panoramic cameras
Resolution 5 MP
Lens 1.68 mm F2.0
IR range 15 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants 180° × 95° field of view. Maximum original resolution 2592 × 1944; stream resolution and frame rate depend on configuration.
Technical documentation ↗ MS-C5376-PE MILESIGHT / Panoramic cameras
Resolution 5 MP
Lens 1.68 mm F2.0
IR range 15 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants 180° × 95° field of view. Maximum original resolution 2592 × 1944; stream resolution and frame rate depend on configuration.
Technical documentation ↗ MS-C8165-PA MILESIGHT / Panoramic cameras
Resolution 8 MP / 4K
Lens 1.68 mm F2.0
IR range 15 m
Housing IP67
Video H.265 / H.264 Documentation and variants MS-C8176-PA MILESIGHT / Panoramic cameras
Resolution 8 MP / 4K
Lens 1.68 mm F2.0
IR range 15 m
Housing IP67
Video H.265 / H.264 Documentation and variants MS-C9674-PA MILESIGHT / Panoramic cameras
Resolution 12 MP
Lens 1.98 mm F2.8
IR range 15 m
Housing IP67
Video H.265 / H.264 Documentation and variants Back to categories ↑ Dome cameras MS-C2972-RFIPE-27135 MILESIGHT / Dome cameras
Resolution 2 MP
Lens 2.7–13.5 mm
IR range 50 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants MS-C2975-RFPD-27135 MILESIGHT / Dome cameras
Resolution 2 MP
Lens 2.7–13.5 mm
IR range 50 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants Colour variants in the Detec catalogue: black and white.
Technical documentation ↗ MS-C4472-RFIPE-3610 MILESIGHT / Dome cameras
Resolution 4 MP
Lens 3.6–10 mm
IR range 50 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants MS-C8172-FIPA MILESIGHT / Dome cameras
Resolution 8 MP / 4K
Lens 2.7–13.5 mm
IR range 50 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants MS-C8175-FPD MILESIGHT / Dome cameras
Resolution 8 MP / 4K
Lens 2.7–13.5 mm
IR range 50 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants Back to categories ↑ Bullet cameras MS-C2962-RFIPE MILESIGHT / Bullet cameras
Resolution 2 MP
Lens 2.7–13.5 mm
IR range 60 m
Housing IP67
Video H.265 / H.264 Documentation and variants MS-C2962-RFIPE-0722 MILESIGHT / Bullet cameras
Resolution 2 MP
Lens 7–22 mm
IR range 100 m
Housing IP67
Video H.265 / H.264 Documentation and variants MS-C4466-RFIPE-3610 MILESIGHT / Bullet cameras
Resolution 4 MP
Lens 3.6–10 mm
IR range 65 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants MS-C8162-FIPA MILESIGHT / Bullet cameras
Resolution 8 MP / 4K
Lens 2.7–13.5 mm
IR range 60 m
Housing IP67
Video H.265 / H.264 Documentation and variants MS-C8164-FIPA MILESIGHT / Bullet cameras
Resolution 8 MP / 4K
Lens 2.7–13.5 mm
IR range 50 m
Housing IP67 / IK10
Video H.265 / H.264 Documentation and variants Back to categories ↑ PTZ and traffic MS-C2941-X25TPE MILESIGHT / PTZ and traffic
Resolution 2 MP
Lens 4.8–120 mm / 25×
IR range 200 m
Housing IP66
Video H.265 / H.264 Documentation and variants MS-C2941-X30TPE MILESIGHT / PTZ and traffic
Resolution 2 MP
Lens 4.7–141 mm / 30×
IR range 200 m
Housing IP66
Video H.265 / H.264 Documentation and variants MS-C2971-X23TPA MILESIGHT / PTZ and traffic
Resolution 2 MP
Lens 5–117 mm / 23×
IR range 160 m
Housing IP66
Video H.265 / H.264 Documentation and variants MS-C2966-X12TLVPA MILESIGHT / PTZ and traffic
Resolution 2 MP
Lens 5.3–64 mm / 12×
IR range 180 m
Housing IP67
Video H.265 / H.264 Documentation and variants LPR and 3D radar. Confirm radar and functions for the selected variant.

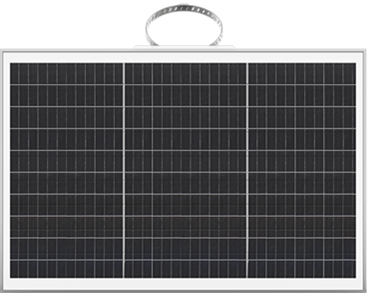

Technical documentation ↗ Back to categories ↑ Solar power and accessories S45 MILESIGHT / Solar power and accessories
Power 45 W
Dimensions 580 × 385 × 69 mm
Weight 4.2 kg
Housing IP67 (junction box) Documentation and variants S100B55 / S100B96 MILESIGHT / Solar power and accessories
Power 100 W
Battery 555 Wh / 962 Wh
Type NMC
Compatibility S100 / SA100 Documentation and variants SA100 MILESIGHT / Solar power and accessories
Type S100 expansion module
Compatibility S100B55 / S100B96 Documentation and variants BJ-N MILESIGHT / Solar power and accessories
Type Solar power system bracket
Compatibility S100 solar power system Documentation and variants SA02 MILESIGHT / Solar power and accessories
Type Wall mount bracket
Mounting Wall Documentation and variants A02 V2 MILESIGHT / Solar power and accessories
Type Pole mount bracket
Mounting Pole Documentation and variants Back to categories ↑ The right camera for the task. Discuss camera coverage, lens selection and system integration with Detec.
