Milesight

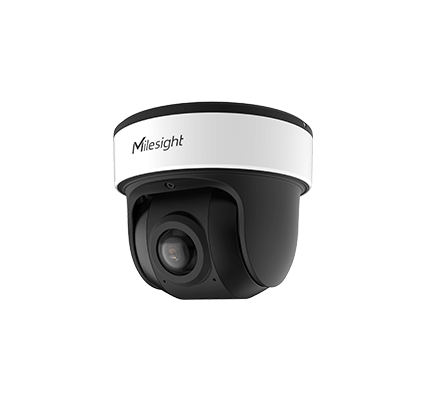

Milesight MS-C8176-PA (NDAA) 8MP, 4K, 120dB Super WDR , IR15m, AI 180° Panoramic Camera,Mini Bullet, 1.68mm@F2.0

Milesight MS-C8176-PA (NDAA) 8MP, 4K, 120dB Super WDR , IR15m, AI 180° Panoramic Camera,Mini Bullet, 1.68mm@F2.0

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.
  • NDAA Compliance
  • 1/2.8″ Progressive Scan CMOS
  • H.265 & H.264 triple-stream encoding
  • 60Hz: 25fps@(3840x2160), 30fps@(3456x1936,3200x1800, 2880x1624, 2560x1440,1920x1080, 1280x720)
  • 120 dB Super WDR
  • Day/Night/Auto/Customize/Schedule
  • 1.68mm@F2.0
  • FOV: H180°/V95°
  • Max. IR LEDs Length 15m
  • Micro SD/SDHC/SDXC memory (256GB)
  • IP67, IK10, -40℃-60℃

Downloads & Resources

Milesight MS-C8176-PA

Specifications

Camera
Image Sensor 1/2.8” 8 Megapixel progressive scan CMOS
Min. Illumination



Color: 0.012Lux@F2.0

 B/W: 0Lux with IR on

WDR 120dB Super WDR
Shutter Time 1/100000s-1s
IR Distance Up to 15m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens
Lens Type 1.68mm@F2.0
Field of View H180°/V86°
Video
Max. Image Resolution 3840x2160
Primary Stream 60Hz: 25fps@(3840x2160), 30fps@(3456x1936,3200x1800, 2880x1624, 2560x1440,1920x1080, 1280x720)50Hz: 25fps@(3840x2160, 3456x1936,3200x1800, 2880x1624, 2560x1440,1920x1080, 1280x720)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)


Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Network
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General
Working Temperature -40℃~60℃
Working Humidity 0~90%(Non-condensing)
Power Supply PoE (802.3af) / DC 12V±10%
Power Consumption



6WMAX

9WMAX (With IR on)



Housing



Up to IP67-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)



Weight 630g
Dimensions 95.8mmX74mmX158.5mm
