Product Details

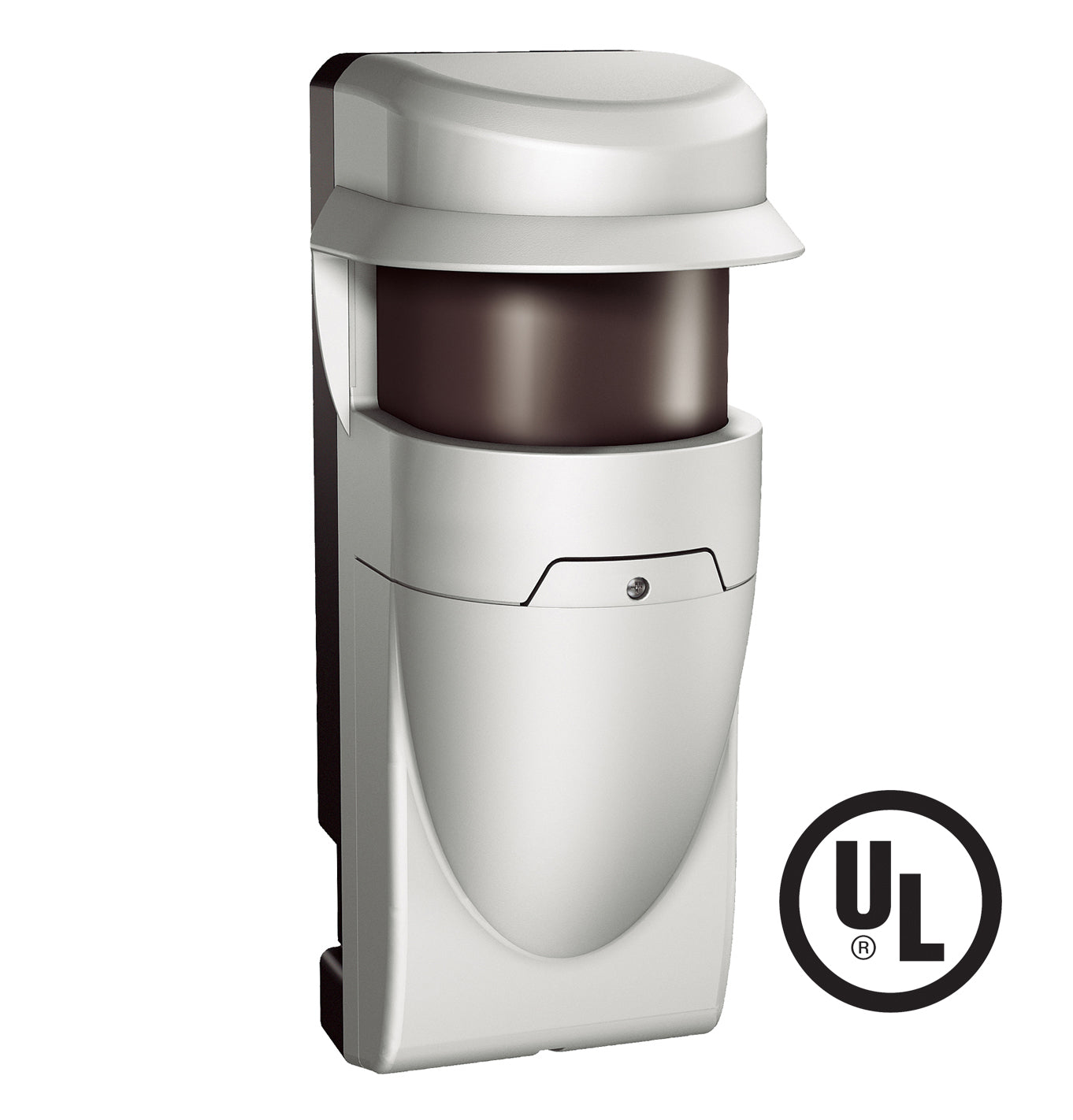

The REDSCAN RLS-3060 is an award-winning laser scanner detector series. It can detect a moving object's size, speed and distance from the detector and process that information with a unique built in algorithm, which results in high reliability detection with minimal false alarms. The detector can also be mounted vertically or horizontally according to the application and site conditions.
The REDSCAN RLS-3060SH is a high resolution, long range 2D LiDAR detector. It has both intelligent detection analysis functions and adjustable detection algorithm parameters that increase its range of applications. Our RLS-3060SH model provides a flexible solution that streamlines video surveillance and a wide range of security applications.
The REDSCAN RLS-3060-SH can be installed directly on an IP security network and integrates with all major Video Management Software (VMS) platforms.
The RLS-3060SH firmware version 8 and REDSCAN Manager (configuration software) version 8.0 together extend the detection range to 50m and add some new setting options.
| Extended Detection Range |
Changeable Dry- contact Alarm Output type |
|
| The increased detection range function can be set to 50m (165ft) radius. The extended area from 30-50m is ideal as a pre-warning zone. In horizontal mode, at 50m, the laser scanner will be able to detect large moving objects such as vehicles: in vertical mode the RLS-3060Sh could detect a walking or squatting person over 100m. |
The new version 8 update offers more flexibility in managing dry contacts with the option to switch from normally open (N.O) to normally closed (N.C). The flexibility in being able to manage multiple outputs means that the sensor suits a number of security applications. |
|
Applications

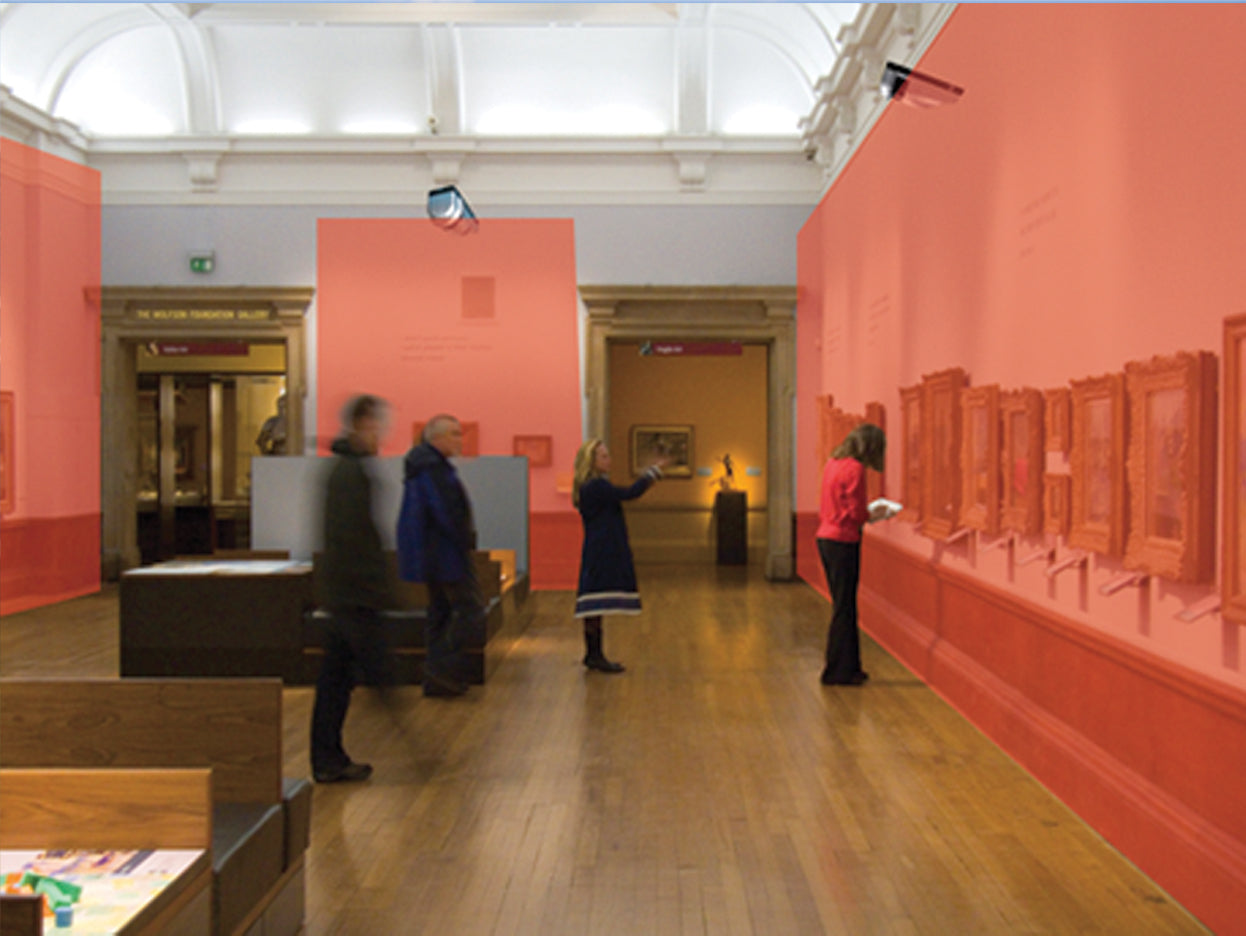

- Buildings

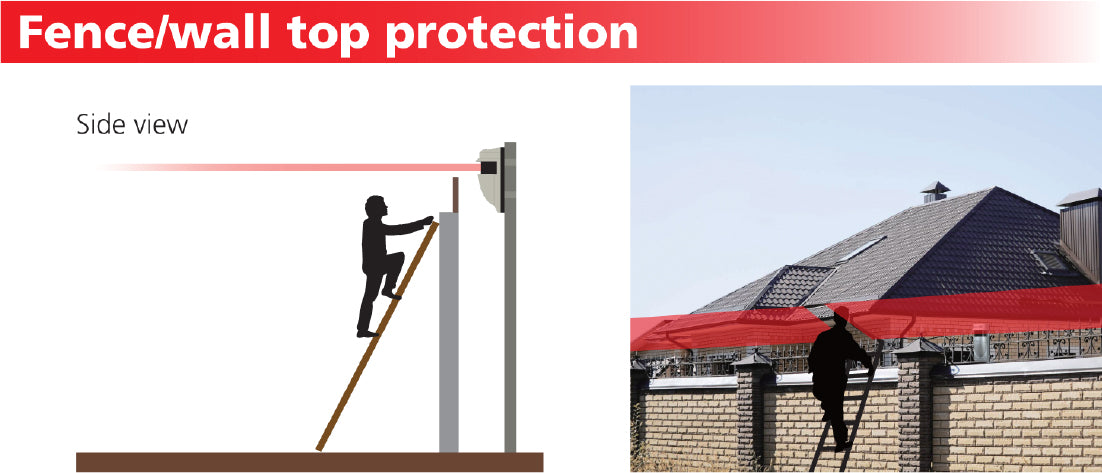

- Perimeter
- Approach

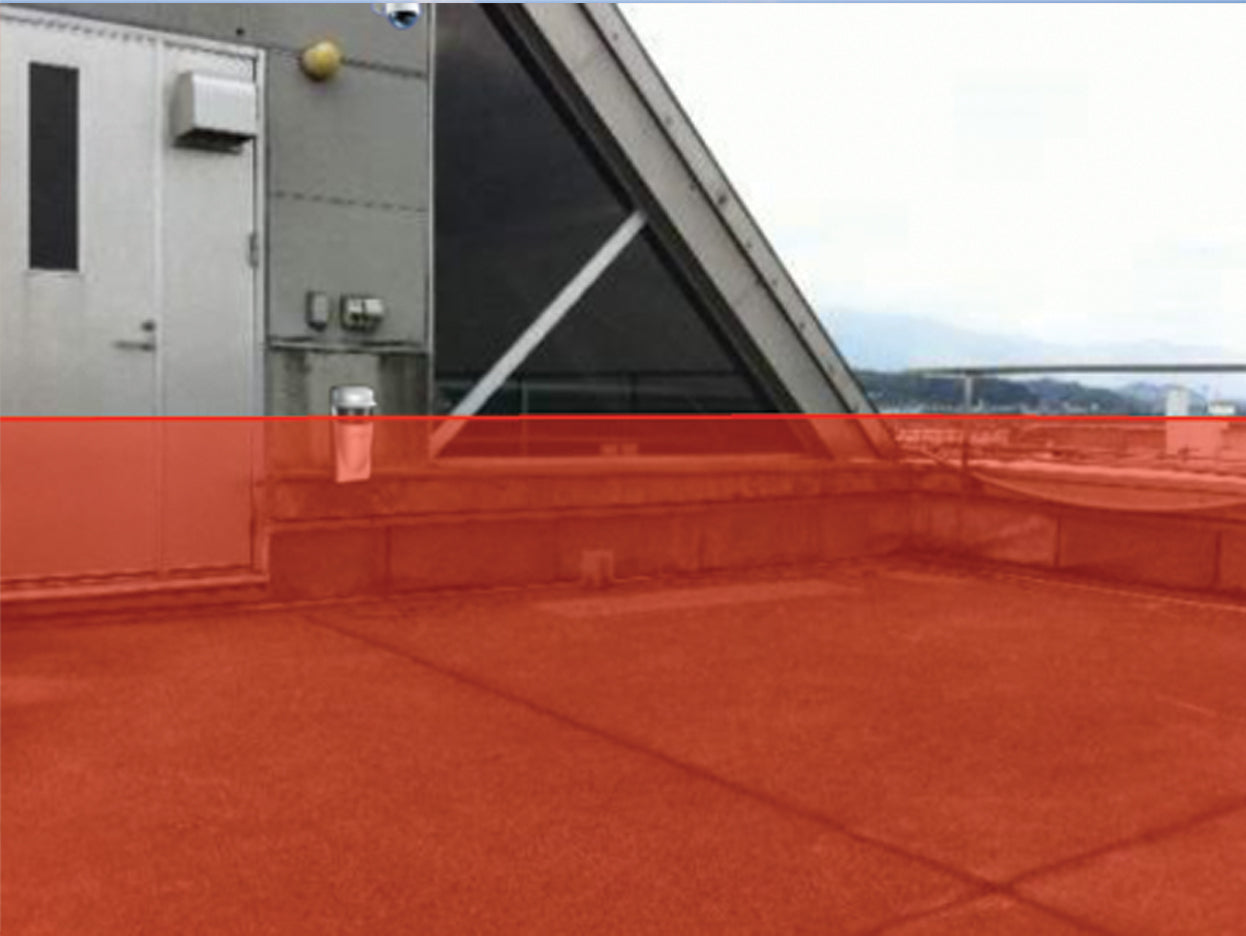

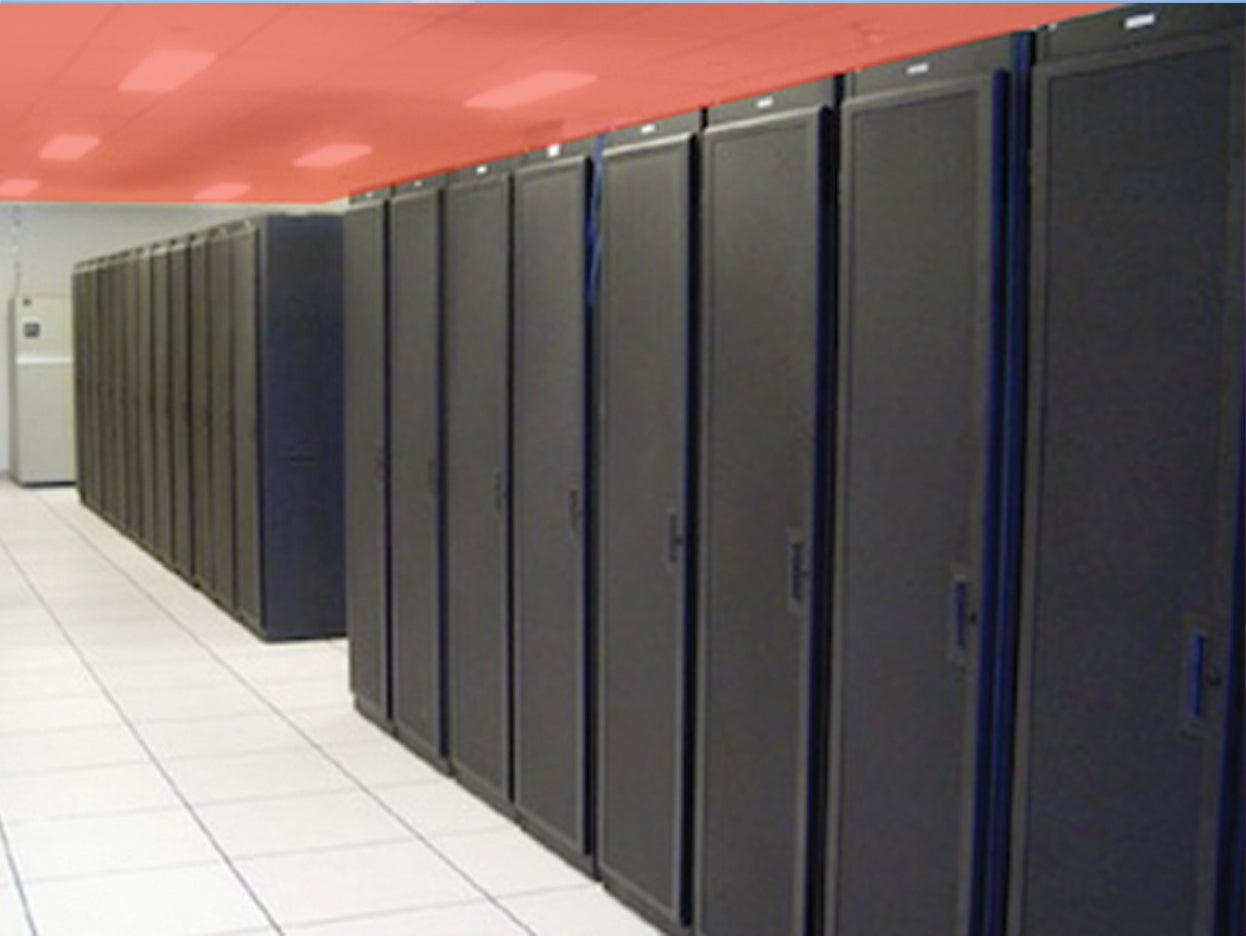

- Roof / Ceiling
Key Features

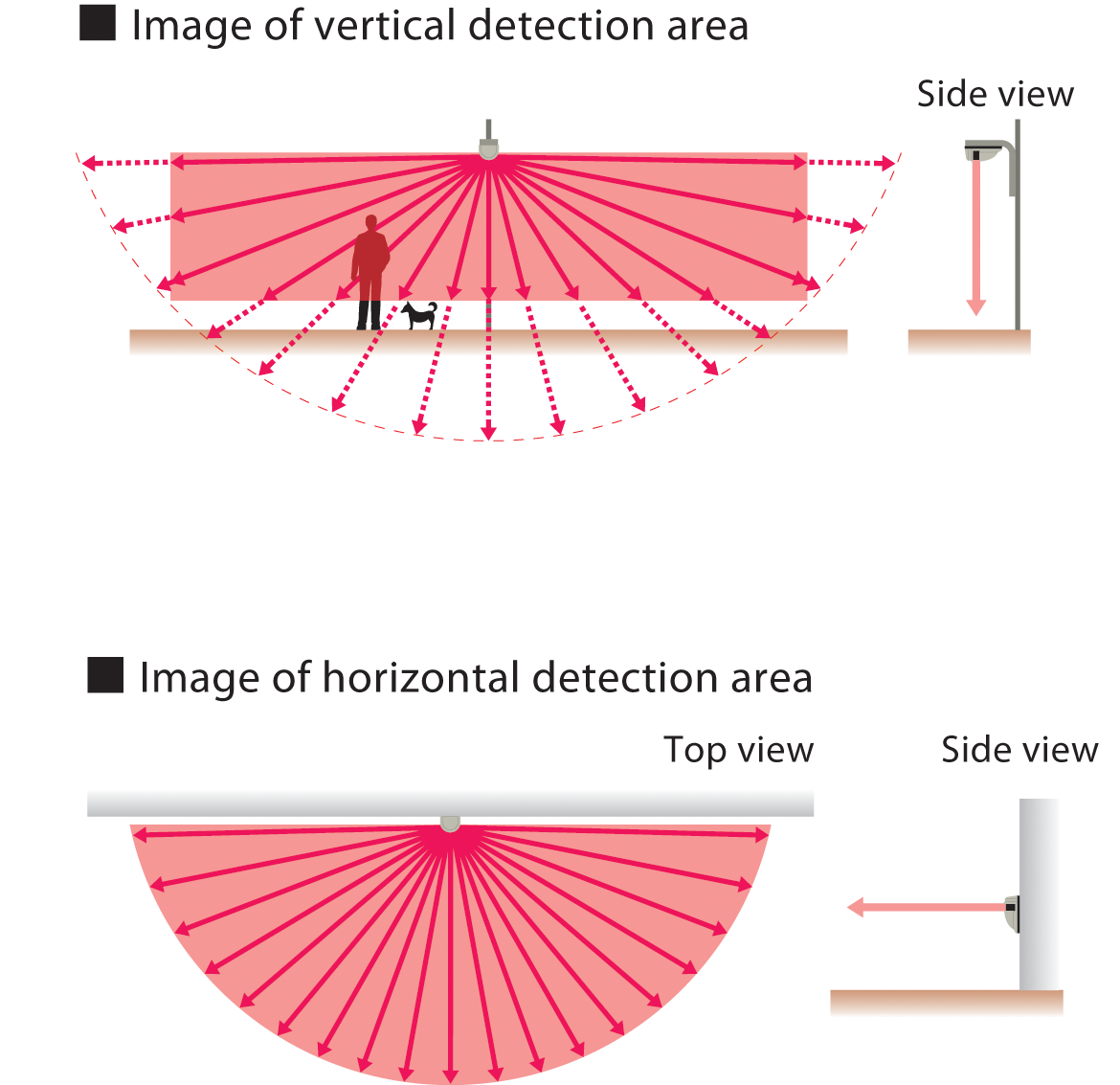

- Vertical and horizontal mounting
- Unique detection algorithm
- Scene selection (outdoor, indoor, indoor etc.)
- Anti-masking function
Product Specifications:
| Model |
RLS-3060SH |
| Detection Method |
Infrared Laser Scan |
| Laser Protection Class |
Class 1 |
| Vertical Area Coverage |
Max. 60 m (Approx. 200 ft.) at 10% reflectivity |
| Horizontal Area Coverage |
Radius: 50 m (Approx. 165 ft.), Arc:190° at 10% reflectivity |
| Detection Resolution |
0.25° |
| Communication Port |
Ethernet ,RJ-45 ,10BASE-T/100BASE-TX |
| Protocol |
UDP, TCP/IP *Redwall Event Code |
| Power Imput |
24 VDC , 24 VAC |
| Current Draw |
400 mA max. (24 VDC) 600 mA max. (24 VAC) |
| Vertical Mounting Height |
15 m (50ft.) (recommendation) |
| Horizontal Mounting Height |
0.7 m (28in.) (recommendation) |
| Target Object Selector |
S / M / L |
| Sensitivity selector |
H / M / L |
| Camera control output |
N.O. 28 VDC, 0.2 A x 4 outputs |
| Master alarm output |
Form C, 28 VDC, 0.2 A max. |
| Trouble output |
Form C, 28 VDC, 0.2 A max. |
| Tamper output |
N.C. 28 VDC, 0.1 A max. |
| Environmental disqualification circuit |
Form C, 28 VDC, 0.2 A max. |
| Alarm period |
Approx. 2 sec., Off delay timer |
| Operating temperature |
-20 to 60 °C (-4 to 140° F) |
| IP rating |
IP66 |
| Dimensions (H x W x D) |
334 x 144 x 155 mm (13.2 x 5.7 x 6.1 in.) |
| Weight |
2.4 kg (85 oz) |
