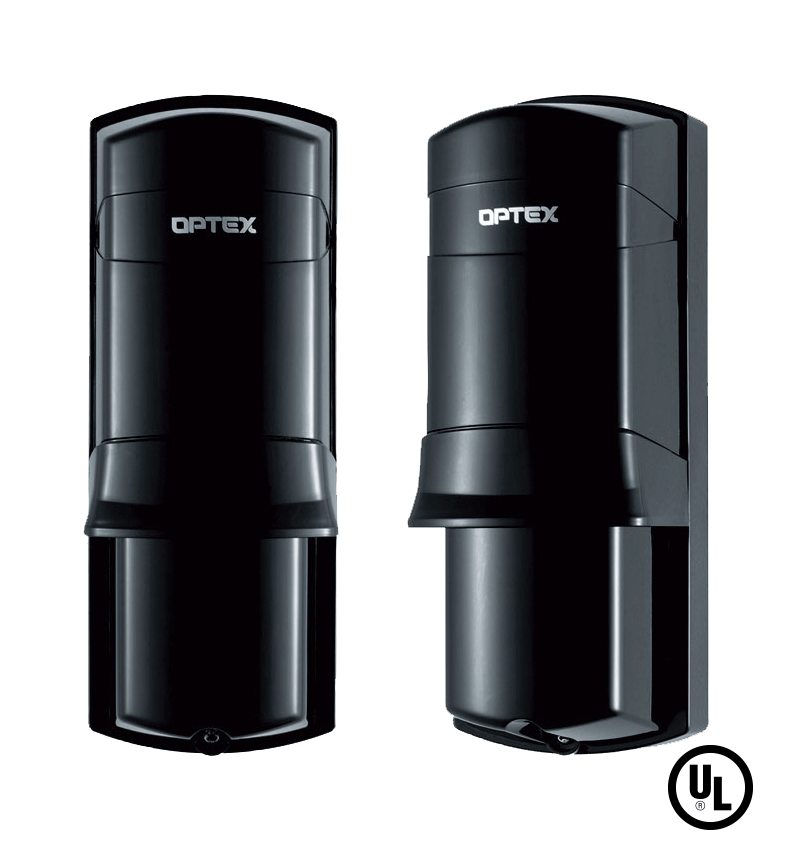

Optex AX-130TN 40m Active IR Sensor

Optex AX-130TN 40m Active IR Sensor

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

Product Details

The AX-130TN is a 40m outdoor hardwired active infrared (AIR) beam set, designed to protect driveways, open areas and small perimeters. The dual beam set can also be connected to an IP network when used in conjunction with the IP/POE module PIE-1.

Weather resistant Flexible settings
IP65 rated, the AX-100TN housing has been designed to resist against both water and dust. The hood featured on the front cover is to prevent frost from attaching to the cover and potentially affecting the signal power. The beam is also fitted with specific relay and absorber to protect it from lightning surges. The AX- beams series offers great set-up flexibility. The angle can be easily and precisely adjusted by +/- 90 degree horizontally and +/- 5 degrees vertically. The beam interruption time could be adjusted between 50, 100, 250 and 500 milliseconds to fit any operational requirements.


  • Perimeter
  • Garden
  • Driveway

Key Features

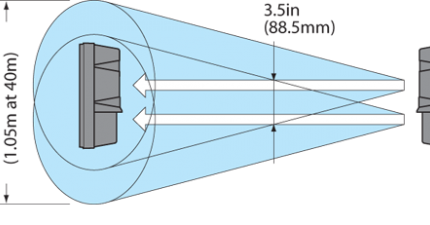

  • Hardwired dual beam set
  • 99% beam blocking stability
  • IP65 structure with high sealing rubber packing
  • High grade spherical lens
Product Specifications:
Model AX-130TN
Maximum detection range 40m
Maximum arrival range 400m
Interruption period Selectable between 50, 100, 250, and 500m sec.
Power supply 10.5 - 28V DC
Current consumption (transmitter + receiver) 41mA (max.)
Alarm period 2 sec.(±1) nominal
Alarm output N.C. 28V DC 0.2A max
Tamper switch N.C. opens when cover is removed at 28V DC, 0.2A max.
Operating temperature -35°C to +60 °C Use the optional heating unit (HU-3) under the environment of -25°C or less minus.
Environmental humidity 95% max.
Alignment angle ±90° Horizontal, ±5° Vertical
Mounting Wall and pole mounting
Weight (transmitter+receiver) 650g

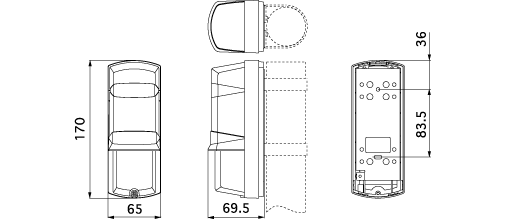

Dimensions (H x W x D) 170mm x 65mm x 69.5mm
Weatherproof IP65
