Eaton Powerware

EATON 9PX 1000i RT2U UPS

EATON 9PX 1000i RT2U UPS

Sale Sold out
Shipping calculated at checkout.

Eaton 9PX 1000W RT2U (tower/rack 2U)

General
Topology On-line double conversion with Power Factor Correction (PFC) system
Configuration Rack/Tower
Part Number 9PX1000IRT2U
Rating (VA/Watts) 1000/1000
Dimensions (H x W x D, mm) 86.5 x 440 x 450
Weight (kg) 17.4
Warranty 3 years electronics, 2 years battery
Rail Kit Included Yes

Electrical Input
Connection
(1) IEC-320-C14
IEC C14
Input Voltage Range 176-276V without derating (up to 100-276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz

Electrical Output
Nominal Voltage 200/208/220/230/240V
Outlets
(8) IEC-320-C13
IEC C13
Efficiency (Normal Mode) Up to 91.5% in online mode (up to 97.5% in Hi-efficiency mode)
Output Frequency 50/60 Hz autoselect, frequency converter mode

Battery
Battery Management ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Extended Battery Capability EBM (2U)

Communications

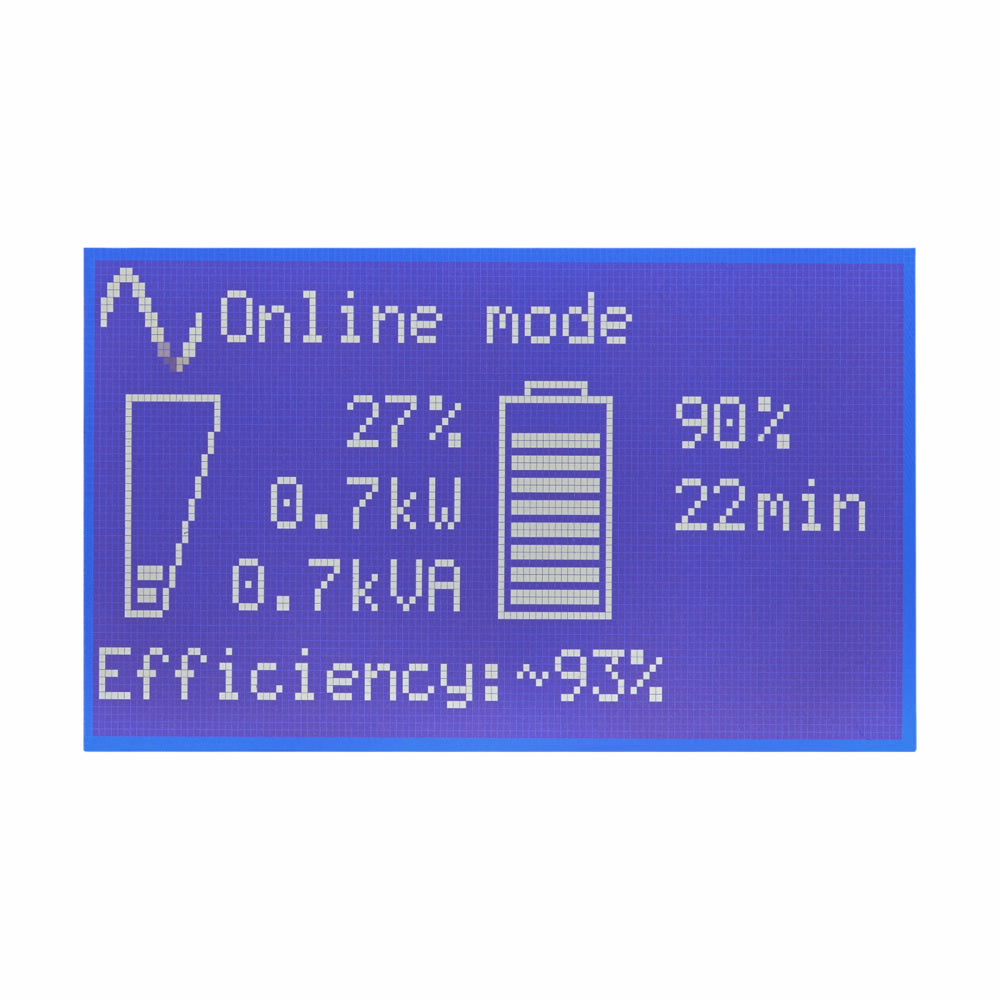

User Interface Multilingual graphical LCD display
Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards.

Environmental & Standards
Audible Noise 35dB
Operating Temperature 0 to 40°C
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Approvals CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star



Documentation

Eaton 9PX UPS (1000-3000W) - Documentation

Product Literature -
Power Infrastructure solutions and products catalogue
English
06-Jun-2018
7828 kB
UPS Quick Guide – IEC version
English
01-Mar-2017
429 kB
Eaton virtualization-ready UPS brochure
English
26-Jan-2017
807 kB
UPS Quick Guide – DIN-Schuko version
English
21-Dec-2016
435 kB
Eaton 9PX 1000-3000 W UPS Datasheet
English
09-Oct-2016
122 kB
Manual(s) -
Eaton 9PX 1-3 kVA UPS & 9PX EBM 48V & 72V Installation and user manual
English
20-Oct-2016
13004 kB
Eaton 9PX 1-3 kVA UPS Quick Start
English
20-Oct-2016
10679 kB
Application Notes -
Solutions for edge computing and IoT infrastructure
English
24-Sep-2017
975 kB
Eaton 9PX UPS (1-3 kVA) firmware Upgrade Instructions
English
04-Sep-2016
1762 kB
How to get OIDs list
English
26-Aug-2016
1368 kB
White Paper(s) -
UPS installation safety requirements
English
29-May-2018
916 kB
Press Release(s) -
Eaton Launches Optimised Power Solutions for Smaller IT Applications
English
03-May-2016
42 kB
Compliance Information -
EC DoC Eaton 9PX up 3kVA
English
12-Apr-2017
57 kB
Declaration of Origin
English
02-Nov-2016
221 kB
