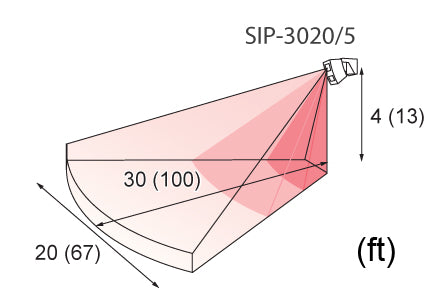

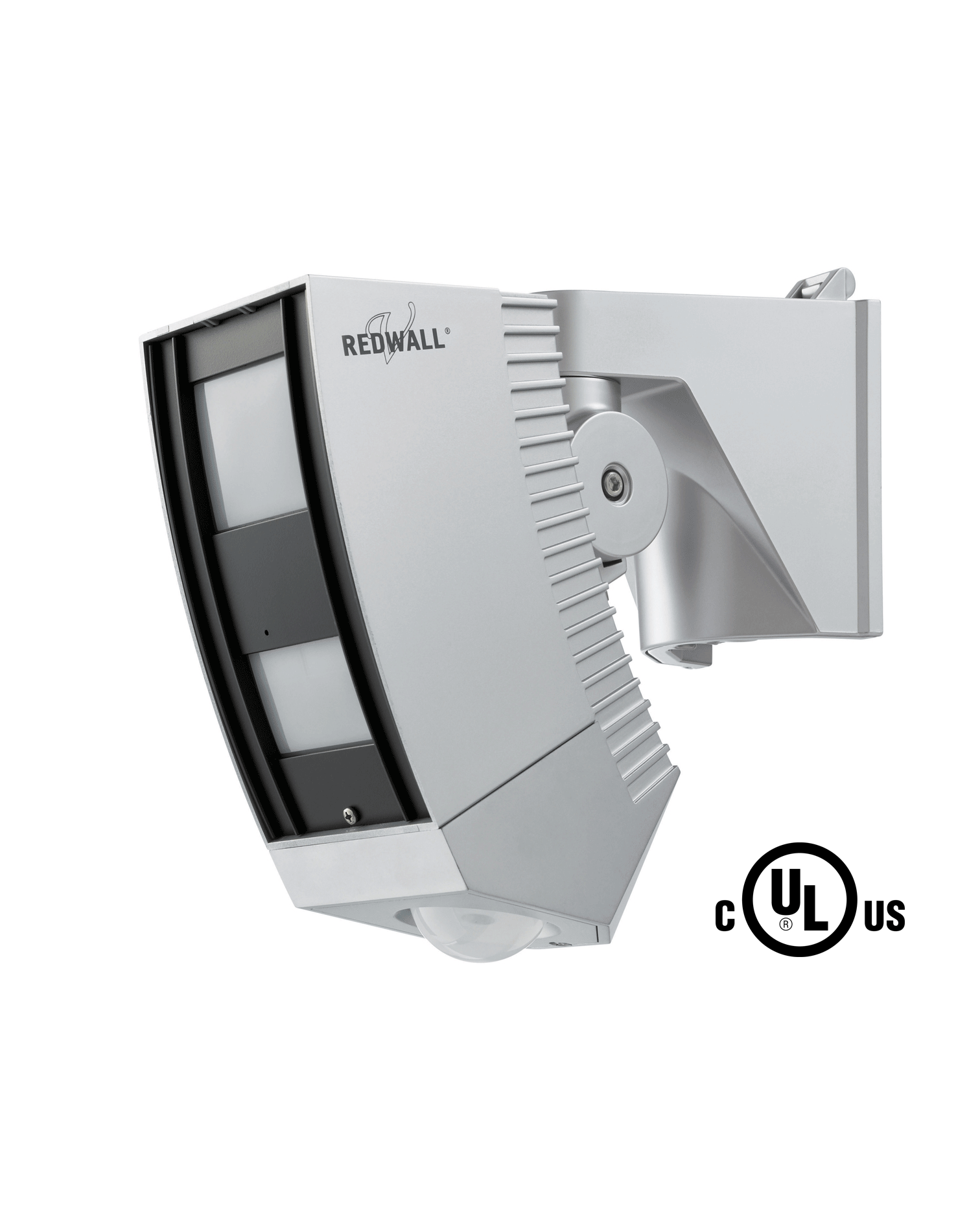

The REDWALL SIP-IP-BOX is a series of long range IP/PoE volumetric outdoor PIRs designed to work in conjunction with a large number of Video Management Software (VMS) platforms, some specific IP camera manufacturers and PSIM providers. The alarm event generated by the IP sensors will trigger a response from the syscurity system. Very stable in outdoor environment the Redwall SIP sensors have a very low false alarm rate and are instrumental for make event-triggered security systems stable. The SIP-3020/5-IP-BOX is a IP/PoE model providing a detection range of 30x20m (LxW) ideal to protect long and narrow areas such as along fence lines or buildings and alleyways. It comprises of the SIP-3020/5 PIR, the IP/PoE encoder module (PIE-1) and an IP65 enclosure box.
|Enhancing IP CCTV systems||Weather and vandal-resistant||VMS integration|
|Event-triggered CCTV systems need to rely on accurate and genuine detection. Although most IP cameras provide video motion detection, using this detection method alone can prove challenging in outdoor environment where the constant changes of lighting and weather conditions can create false alarms. The SIP-3020/5-IP-BOX will detect motion whatever the lighting conditions and will track the intruder across its three independent detection zones - far, near and creep zones- and trigger the relevant camera presets to follow visually the intruder.||The SIP PIRs are designed to be used in harsh outdoor environment, their sensitivity are adjusted automatically to the ambient temperature and illuminance and they have a IP65 rating for the main unit. They also vandal-resistant featuring a polycarbonate housing, an accelerometer to detect if the sensor position has been tampered with and an active infrared antimasking.||The REDWALL SIP-IP-BOX series generates its unique alarm event code (REC) which communicates a number of events including detection, tamper and environmental status to the IP cameras, DVR and VMS platforms that have integrated the code. The list of VMS plaforms that have already integrated our event code includes all the key palyers and is constantly growing.|
- 30x20m IP/PoE intelligent PIR
- Integrated with most VMS platforms
- Three independent detection zones far/near/creep
- Active infrared antimasking and vandal-resistant
