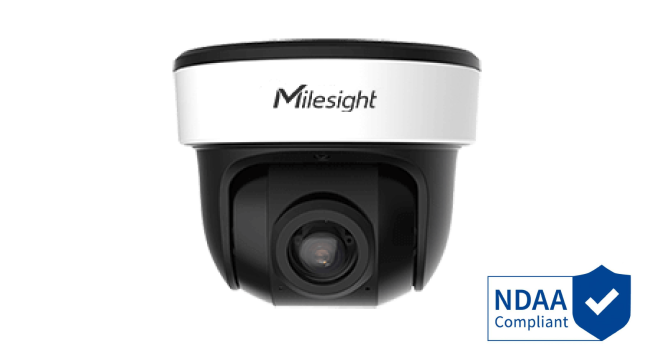

Milesight MS-C8176-PA (NDAA) 8MP, 4K, 120dB Super WDR , IR15m, AI 180° Panoramic Camera,Mini Bullet, 1.68mm@F2.0
Milesight MS-C8176-PA (NDAA) 8MP, 4K, 120dB Super WDR , IR15m, AI 180° Panoramic Camera,Mini Bullet, 1.68mm@F2.0
Vanlig pris
$0.00 USD
Vanlig pris
Salgspris
$0.00 USD
Enhetspris
/
per
- NDAA
- 1/2.8" Progressiv skanning CMOS
- H.265 & H.264 trippel-strøm koding
- 60Hz: 25fps@(3840x2160), 30fps@(3456x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
- 120 dB Super WDR
- Dag/Natt/Auto/Tilpass/Planlegg
- 1.68mm@F2.0
- Synsfelt: H180°/V95°
- Maks. IR LED-lengde 15m
- Micro SD/SDHC/SDXC-minne (256GB)
- IP67, IK10, -40℃-60℃
Nedlastinger
Spifikasjoner
Camera | |
Image Sensor | 1/2.8” 8 Megapixel progressive scan CMOS |
Min. Illumination |
Color: 0.012Lux@F2.0 B/W: 0Lux with IR on |
WDR | 120dB Super WDR |
Shutter Time | 1/100000s-1s |
IR Distance | Up to 15m |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
S/N | >55dB |
Lens | |
Lens Type | 1.68mm@F2.0 |
Field of View | H180°/V86° |
Video | |
Max. Image Resolution | 3840x2160 |
Primary Stream | 60Hz: 25fps@(3840x2160), 30fps@(3456x1936,3200x1800, 2880x1624, 2560x1440,1920x1080, 1280x720)50Hz: 25fps@(3840x2160, 3456x1936,3200x1800, 2880x1624, 2560x1440,1920x1080, 1280x720) |
Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
Privacy Masking | Up to 8 areas |
ROI | Up to 8 areas |
Image Setting | Brightness/Contrast/Saturation/Sharpness |
Interface | |
Ethernet | 1*RJ45 10M/100M Ethernet Port |
Network | |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
Audio | |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | Support |
Intelligent Analytics | |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
System | |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP Support | Yes, Voice & Video-over-IP |
Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
System Compatibility | ONVIF Profile G & Q & S & T, API |
General | |
Working Temperature | -40℃~60℃ |
Working Humidity | 0~90%(Non-condensing) |
Power Supply | PoE (802.3af) / DC 12V±10% |
Power Consumption |
6WMAX 9WMAX (With IR on)
|
Housing |
Up to IP67-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)
|
Weight | 630g |
Dimensions | 95.8mmX74mmX158.5mm |
