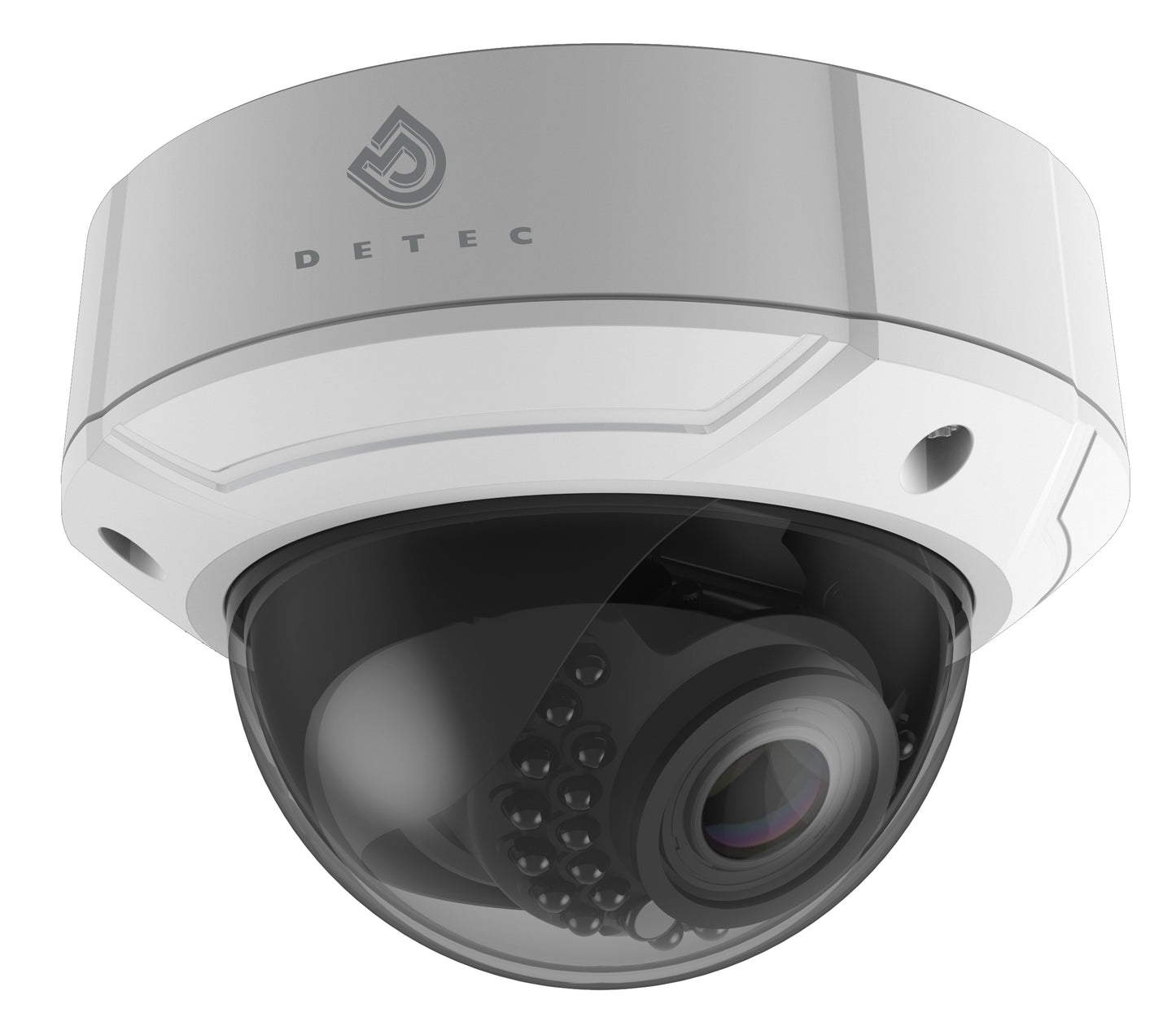

Detec DTC-OIMD5MPWDIRP 5MP Minidome IP Camera

Detec DTC-OIMD5MPWDIRP 5MP Minidome IP Camera

Regular price
Sale price
Shipping calculated at checkout.

1/3” CMOS, 2.8-12mm, Digital WDR, H.264+, 5Mpix, 20fps, Two-way Audio, I/O, Micro SD slot, 20m IR, Vandal-Proof, IP67, PoE

Key Features
• 5 Megapixel High Resolution
• Dual Video Streams
• 2.8mm to 12mm Motorized Lens
• Digital Wide Dynamic Range
• 3D Digital Noise Reduction
• PoE 802.3af
• IR Range 20 Meters (~100 feet)
• IP66 and IK10 Protection
• Audio and Alarm Input/Output
• Edge Storage MicroSD slot, 128 GB
Specifications

SPECIFICATIONS
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.014 lux @ (ƒ/1.4,AGC on); B/W; 0 lux with IR
Shutter time: 1/3 s to 1/10,000 s
Slow shutter:  Yes
Lens:  2.8 - 12 mm @ F1.4, Motorized lens, Angle of view: 98.4°-30.2°
Lens Mount: f14
Adjustment Range:  Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Day& Night: IR cut filter (Auto/Schedule/Alarm Trigger)
Wide Dynamic Range: DWDR
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/MJPEG/H.264+
H.264 code profile: Main Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression:  G.711/G.722.1/G.726/MP2L2
Dual Stream:  Yes
Max. Image Resolution: 2560 x 1920
Frame Rate:
50Hz: 20fps(2560 × 1920), 25fps(2048 × 1536, 1920 x 1080, 1280 x 720)
60Hz: 20fps(2560 x 1920), 30fps(2048 × 1536, 1920 × 1080, 1280 × 720)
Image Enhancement:  WDR, BLC, ROI
Image Settings:  Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:  Yes, zone configurable
ROI:  Yes, 4 regions
Network
Network Storage:  NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:  Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security: User authentication, watermark, IP address filtering, anonymous access, reset
System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio: 1-ch 3.5 mm audio in (Mic in/Line in)/out interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm Input:  1
Alarm Output:  1
On-board storage:  Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:  Yes
General
Operating Conditions:  -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:  12 VDC ± 10%, PoE (802.3af)
Power Consumption:  Max. 5.5 W
Impact Protection:  IEC60068-2-75Eh, 50J; EN50102, IK10
Weather Proof:  IP67
IR Range:  Up to 30m
Dimensions:  F 140 × 99.9 mm (F 5.51” × 3.94”)
Weight:  1000g (2.20 lbs)



Downloads

Data Sheet DTC-OIMD5MPWDIRP
