Detec DTC-IVS-XE6C-HD8v2 19" 2U IP Video Server, 8x HDD slots, 2x 4TB storage incl., 1TB SSD, Windows 10 PRO

Capacity

Max. recommended number of cameras:

|

Detec Next Core & Advanced camera licenses: 64x Full HD cameras @ 2Mb/s

Detec Next Advanced+ camera licenses: 16x Full HD cameras @ 2Mb/s

Detec Next PRO camera licenses: 8x Full HD cameras @ 2Mb/s

Processor

Model:

|

Intel® Xeon® Processor E-2356G (6 Cores, 12 Threads 12MB Cache, 5.0GHz max.)

Mainboard

Model:

|

Asus, P12R-E-10G-2T ATX, with ASMB10-iKVM

Memory

Memory size:

|

16GB

Operating System

Type:

|

Microsoft Windows 11 Pro, 64-bit

Video & Audio Output

HDMI output:

|

1 - Resolution: 4096 × 2304/60Hz (4K)

VGA output:

|

1 - Resolution: 1920 × 1200/60Hz

Audio output:

|

High Definition Audio, 1/4/5.1/7.1-channel, support for S/PDIF Out

System Drive

SSD:

|

1TB M.2 PCIe x NVMe SSD

Storage

SATA:

|

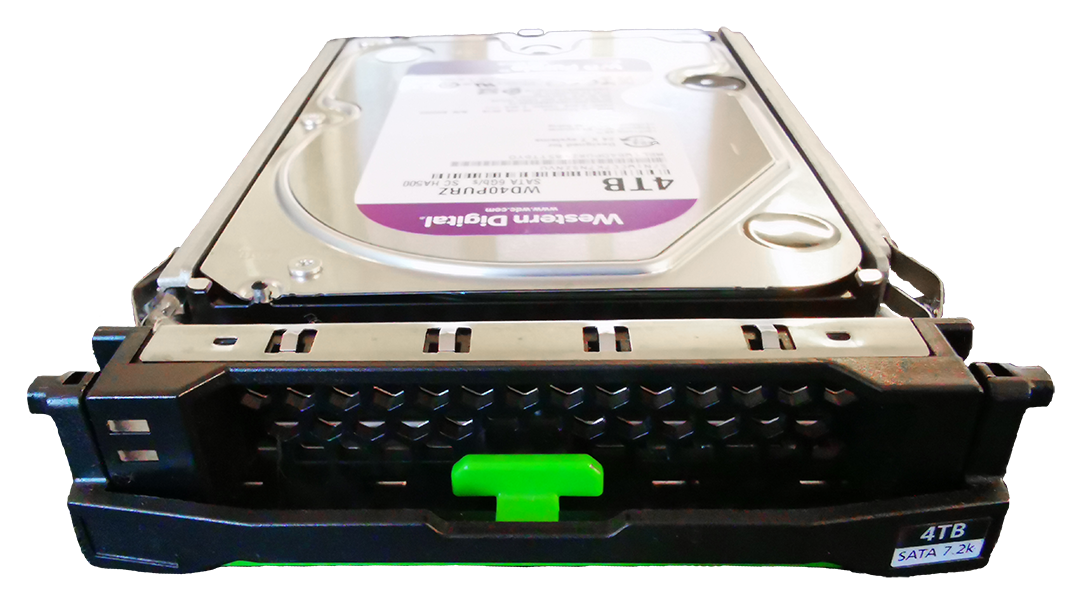

8 hot-swappable SATA 3.0 interfaces for 8 HDDs

Storage Capacity:

|

8TB (2x 4TB) HDDs included

Up to 96TB total storage capacity, 12TB capacity of each disk

External Interface

Audio:

|

6 audio jacks - Line In, Line Out, Mic In, Center/Subwoofer, Rear Speakers, Side Speakers

Network interface:

|

2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces

USB interface:

|

Front panel: 1 × USB 3.1;

Rear panel: 5 × USB 3.1 Gen 1 (blue), 1 × USB 3.1 Gen 2 Type-A (red)

Serial interface:

|

RS232, RS485 and PS/2 interface

Alarm in/out:

|

N/A

General

Power supply:

|

100 ~ 240 VAC, 10-5A, 50 ~ 60 Hz

Consumption
(incl. 2x HDDs):

|

Max. 146W, idling 49W

Working temperature:

|

0 ºC ~ +45 ºC

Working humidity:

|

10% ~ 90%

Chassis:

|

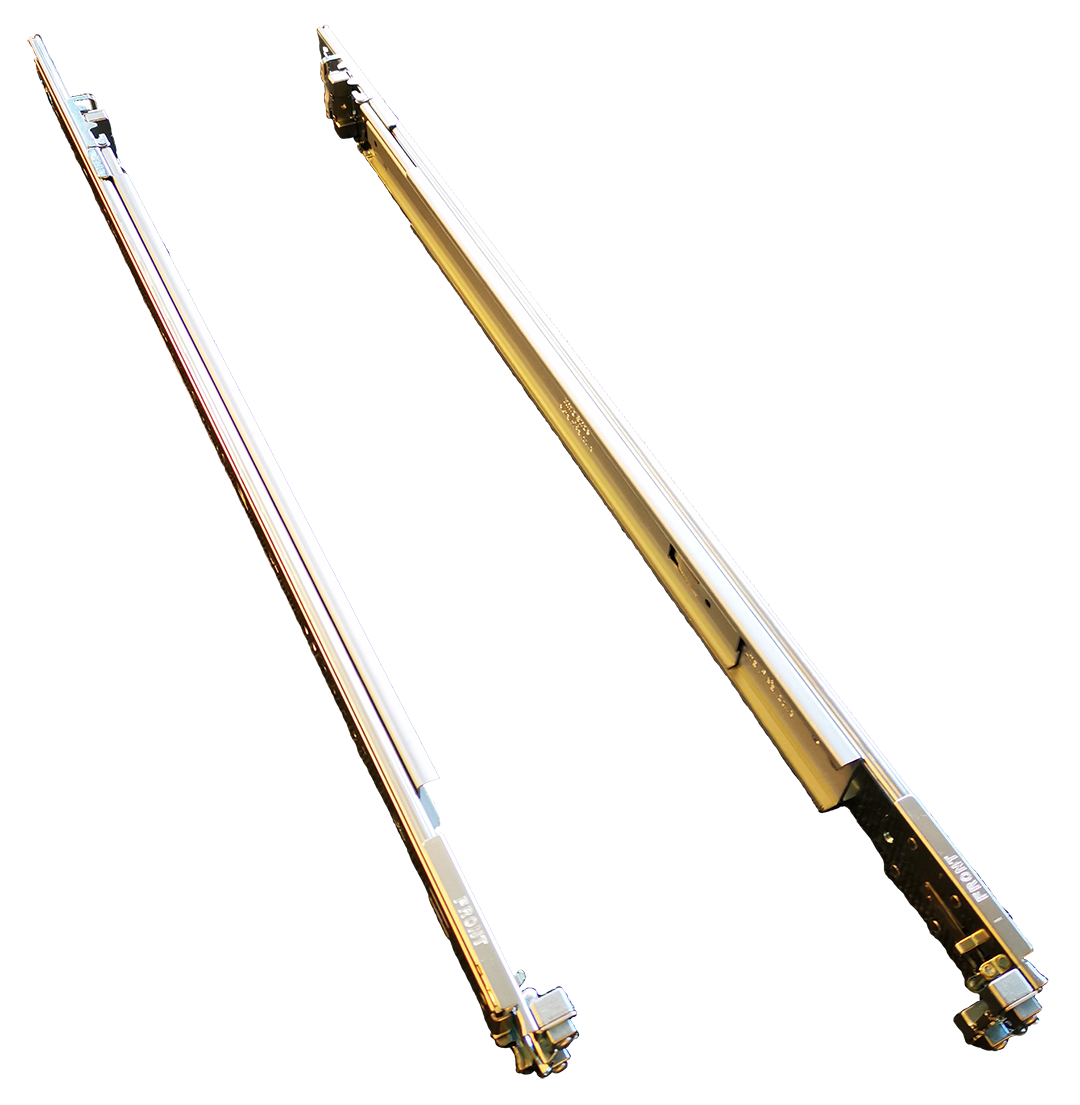

19-inch 2U rack-mounted chassis with rack rails

Dimensions (W × D × H):

|

432 × 559 × 90mm (17" × 22" × 3.5")

Dimensions bezel & ears:

|

483 × 600 × 90mm (19" × 23.6" × 3.5")

Weight (incl. 2x HDDs):

|

Gross weight: 22.7kg (50lbs) / Net weight: 13.5kg (29.8lbs)
