• GS1300-18HP
  • GS1300-18HP front
  • GS1300-18HP rear

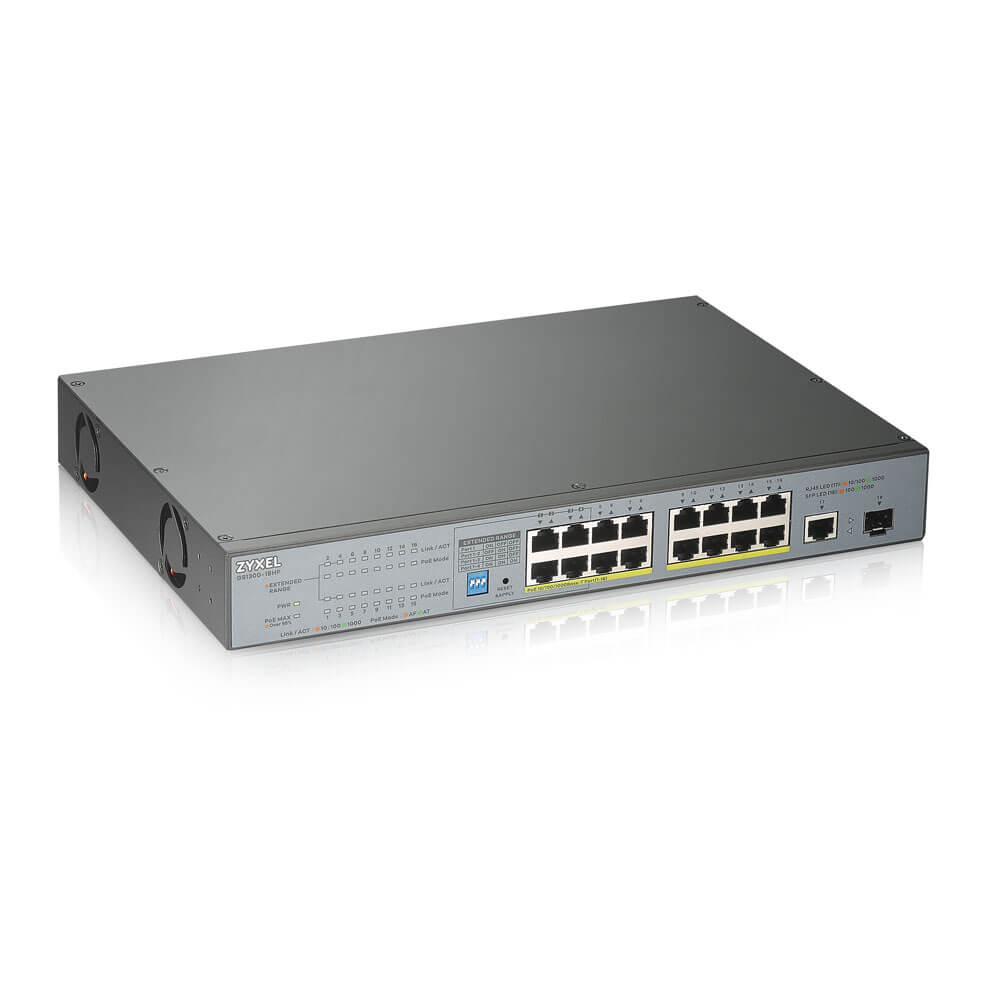

  • GS1300-18HP top
1 4

ZyXEL

ZYXEL GS1300-18HP 16-port GbE Unmanaged PoE Switch with GbE Uplink, 170W

ZYXEL GS1300-18HP 16-port GbE Unmanaged PoE Switch with GbE Uplink, 170W

Sale Sold out
Shipping calculated at checkout.

Design For Surveillance

Crafted for CCTV, Zyxel introduces the brand-new GS1300 unmanaged switch for surveillance applications.

GS1300-design-for-surveillance

New outlook

Coated in titanium grey, the GS1300 excels with an eye-catching identity dedicated for surveillance Switch. On top of the conventional unmanaged switch, GS1300 comes with special design for CCTV adoption.

GS1300 NEW OUTLOOK

Easy for long-distance deployment

The GS1300 series overcomes the 100 meter limitation of Ethernet, and fulfills the need to deploy IP camera or powered devices using existing Cat 5e cable to distant locations. By toggling the DIP switch to turn on the extended-range mode, instantly achieve distant deployments up to 250 meters. Save your money and effort with simply one PoE Switch.

GS1300 Extended Range

High power budget, intuitive front panel design

The GS1300 series includes 3 models with a range of large power budgets from 130 W to 250 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status.

GS1300HP High Power Budget

Best fit for surveillance installation

Without the use of an adaptor, the internal power supply design is suitable for mounting onto server racks allowing more freedom and utilization of space.

Features

Features

Item Features
Standard Compliance
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-Tx Ethernet
  • IEEE 802.3ab 1000Base-T Ethernet
  • IEEE 802.3z 1000Base-X
  • IEEE 802.3x flow control
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE plus
  • IEEE 802.3az EEE
  • IEEE 802.1p Class of Service (CoS) prioritization
Certifications
  • EMC:
    • CE, FCC, C-Tick, Class A
    • BSMI CNS13438
  • Safety:
    • LVD EN62368-1
    • BSMI CNS14336-1
  • RoHS compliant
Installation Features
  • Supports lightning surge protection:
    • Ethernet port: 2 KV
    • Power input: 4 KV
  • Supports ESD protection (Air/Contact): 8 KV/4 KV
  • Extended range of up to 250 meters*
    • Fixed link speed at 10Mbps
    • Limited to 802.3af PDs and cameras
* Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
Limited life-time warranty

Warranty terms, service availability, and service response times may vary from country or region to country or region.
