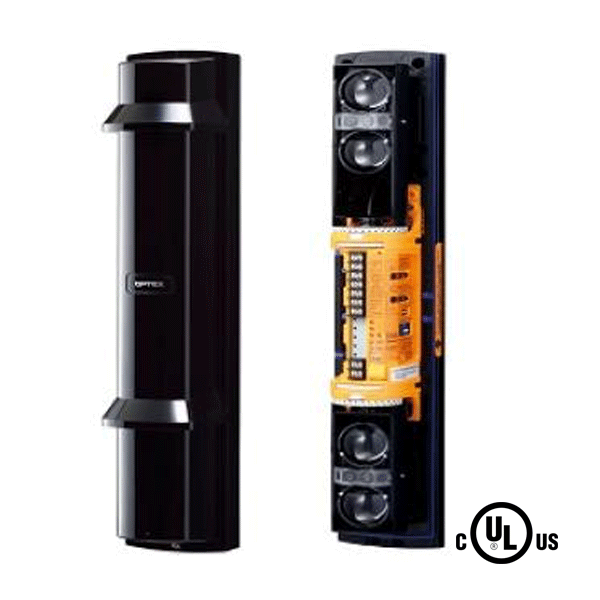

Optex SL-200QDP- 60 m Active IR Sensor

Optex SL-200QDP- 60 m Active IR Sensor

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

Product Details

The SL-200QDP is a 60m outdoor active infrared (AIR) beam designed for perimeter security. The Quad beam set features four selectable channels making it easy to stack in beam towers and dual modulation to provide a highly reliable signal transmission even when exposed to strong sunlight or light sources. The SL-200QDP can also be connected to an IP network when used in conjunction with the IP/POE module PIE-1.

Easy alignment tools Weather resistant
A perfect alignment between transmitter and receiver is key to optimise the operation of the active beams. To make the optical alignment easier, the SL-200QDP chassis features vivid yellow colours to be seen from the distance and the "Sniper Viewfinder", a telescopic lens magnifying twice the distance inside the beam. A sound gauge fitted in the receiver validates the accuracy of the optical alignment. For fine tuning, the SL-QDP receiver is fitted with five LED to indicate the level of the signal received from the transmitter ranging from poor to excellent. IP65 rated, the SL-200QDP housing has been designed to resist against both water and dust. The two hoods featured on the front cover are positioned over the upper and lower beam to prevent frost from attaching to the cover and potentially affecting the signal power. The housing is made of UV resistant polycarbonate material to avoid deterioration caused by ultraviolet rays and maintain good transparency for the infrared beams over time. Additionally, the beams are fitted the light disturbance compensation circuit which differentiates the beam signal from other external light sources.


  • Perimeter
  • Roof / Ceiling
  • Garden
  • Driveway

Key Features

  • High grade aspherical lenses
  • Includes LED and sound gauge
  • Stackable model
  • Dual-modulation Beam
Product Specifications:
Detection Range 60m/200ft
Beam Frequencies 4ch selectable
Current Consumption Normal 17mA/Max 24mA
Ambient Temperature -35°C - +60°C (-30°F - 140°F)
Water Protection IP65
Dimensions HxWxD 448(17.6) x 79(3.1) x 96(3.8) mm(in)
Weight 2400g (84.6oz)
