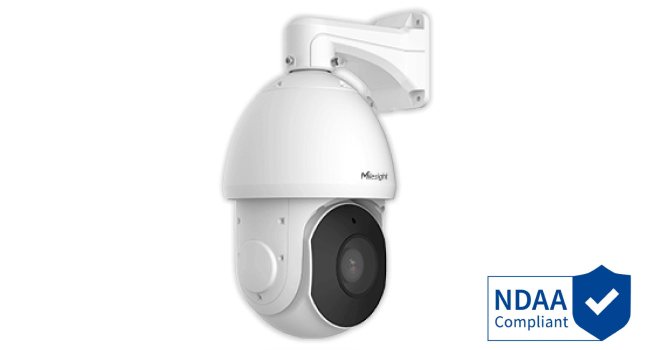

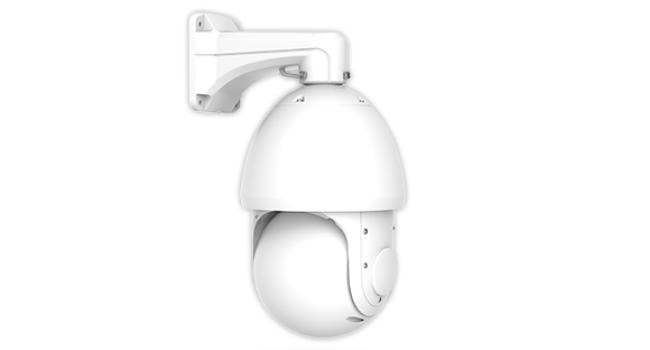

Milesight MS-C2941-X25TPE (NDAA) 2MP, 140dB, Super WDR , IR200m, AI, PTZ Camera, 4.7-141mm
Milesight MS-C2941-X25TPE (NDAA) 2MP, 140dB, Super WDR , IR200m, AI, PTZ Camera, 4.7-141mm
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- NDAA Compliance
- 1/2.8” 2 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
- 140 dB Super WDR
- Day/Night/Auto/Customize/Schedule
- 4.7–141mm, 25X Optical Zoom/16X Digital Zoom@F1.5
- FOV: 62°-3°
- Max. IR LEDs Length 200m
- Micro SD/SDHC/SDXC memory (256GB)
- IP66, IK10, -40℃-60℃
- 360°endless / Pan Manual Speed: 0.1°~250°/s, Pan Preset Speed: 250°/s
- -5°~90°(Auto Flip) / Tilt Manual Speed: 0.1°~160°/s, Tilt Preset Speed: 160°/s
Downloads & Resources
Specifications
Camera | |
Image Sensor | 1/2.8” 2 Megapixel progressive scan CMOS |
Min. Illumination | Color: 0.005Lux@F1.5 B/W: 0Lux with IR on |
WDR | 140dB Super WDR |
Shutter Time | 1/100000s-1s |
IR Distance | Up to 200m |
Day/Night Mode | Day/Night/Auto/Customize/Schedule |
S/N | >55dB |
Lens | |
Lens Type | 4.8-120mm, 25X Optical Zoom/16X Digital Zoom @F1.5 |
Field of View | H61.6°~H2.8°/D70.8°~D3.8° /V36.8°~V1.8 |
Zoom Speed | Approx 6s (Wide-Tele) |
Focus Control | Auto/Semi-Auto/Manual |
Iris Control | Auto |
Minimum Working Distance |
100/1500mm (Wide/Tele) |
Aperture | F1.5~F3.5 |
PTZ | |

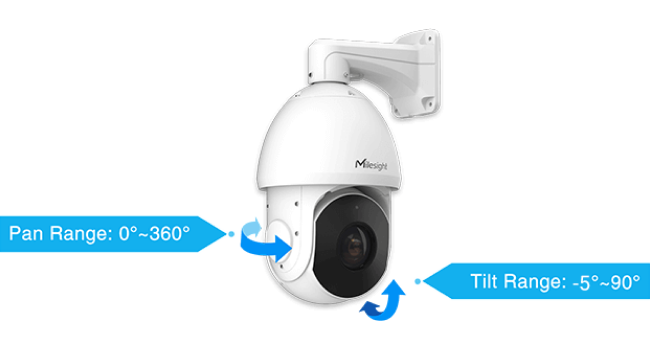

Pan Range/Pan | 360°endless / Pan Manual Speed: 0.1°~250°/s, , Pan Preset Speed: 250°/s |
Tilt Range/Tilt Speed | -5°~90°(Auto Flip) / Tilt Manual Speed: 0.1°~160°/s, Tilt Preset Speed: 160°/s |
Patrol | 8 Patrols, up to 48 presets each patrol |
Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
Video | |
Max. Image Resolution | 1920x1080 |
Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
ROI | Up to 8 areas |
Image Setting | Brightness/Contrast/Saturation/Sharpness |
Interface | |
Ethernet | 1*RJ45 10M/100M Ethernet Port |
Network | |
Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
Audio | |
Audio Compression | G.711/AAC/G.722/G.726 |
Audio Sampling Rate | 8/16/32/48KHz |
Audio Bit Rate | 16~256kbps |
Two-way Audio | Support |
Intelligent Analytics | |
Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
System | |
Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
Advanced Function | AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
SIP/VoIP Support | Yes, Voice & Video-over-IP |
Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
System Compatibility | ONVIF Profile G & Q & S & T, API |
General | |
Working Temperature | -40℃~60℃ |
Working Humidity | 0~95%(Non-condensing) |
Power Supply | PoE (802.3af) / DC 12V±10% |
Power Consumption |
11W MAX 27W MAX(With IR on)
|
Housing |
Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)
|
Heater | Support |
Surge Protection | 6KV |
Weight | 4Kg |
Dimensions | Φ205mmX308mm |
