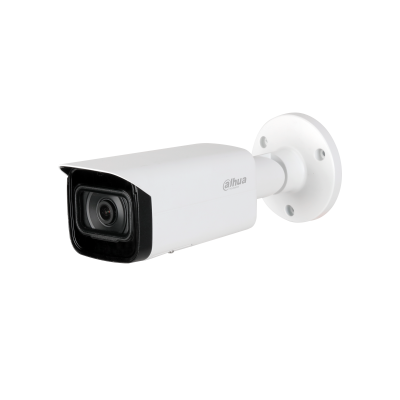

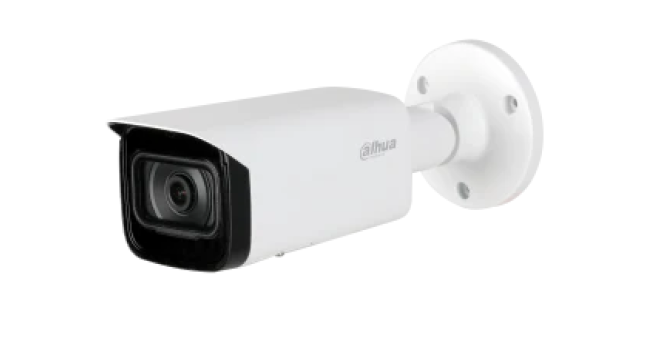

Dahua IPC-HFW5449T-ASE-NI 4MP Full Color WDR Bullet AI IP Camera

Camera

Image Sensor

1/1.8” 4Megapixel progressive scan CMOS

Effective Pixels

2688 (H) × 1520 (V)

RAM/ROM

1 GB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

Minimum Illumination

0.001 Lux @F1.0

Lens

Lens Type

Fixed-focal

Mount Type

Board-in

Focal Length

3.6 mm

Max. Aperture

F1.0

Angle of View

H: 93°, V: 50°

Aperture Type

Fixed

Close Focus Distance

2.0 m (6.56 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6mm

70 m (230 ft)

28 m (91 ft)

14m(46ft)

7m(23ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚

Artificial Intelligence

Face Detection

Support face image capture

Perimeter Protection

Tripwire; intrusion (Recognition of vehicle and people); fast moving; loitering detection; parking detection and people gathering

People Counting

Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265, H.264, H.264B, H.264H,

MJPEG(sub stream)

Smart Codec

Yes

Streaming Capability

3 Streams

Resolution

2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 2688 × 1520 (1 fps–25/30 fps)

2560 × 1440 (1 fps–25/30 fps)

1920 × 1080 (1 fps–50/60 fps)

Sub Stream: D1 (1 fps–25/30 fps)

D1 (1 fps–50/60 fps)

Third Stream: 1080P (1 fps–16 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–8192 Kbps

Day/Night

Day/Night: Electronic

Color/B/W

BLC Mode

BLC/HLC/WDR (140 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711a, G.711Mu, G.726, AAC, G.723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milstone, Genetec; P2P

Streaming Method

Unicast/Multicast

Max. User Access

20 Users

Edge Storage

NAS; FTP; SFTP

Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, P2P

Smart Phone

iOS, Android

Certifications

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

1/1 channel In/Out

Alarm

1 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V (±30%), PoE (802.3af) (Class 0)

Power Consumption

<4.4W

Environmental

Operating Conditions

-30° C to +60° C (-22° F to +140° F)/Less than 95% RH

Storage Conditions

-30° C to +60° C (-22° F to +140° F)

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”)

Net Weight

0.805 Kg (1.77 lb)

Gross Weight

1.16 Kg (2.56 lb)
