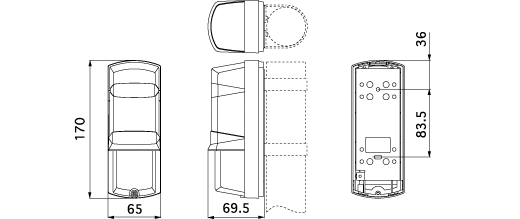

  • AX-200TF DIMENSIONS
1 3

OPTEX

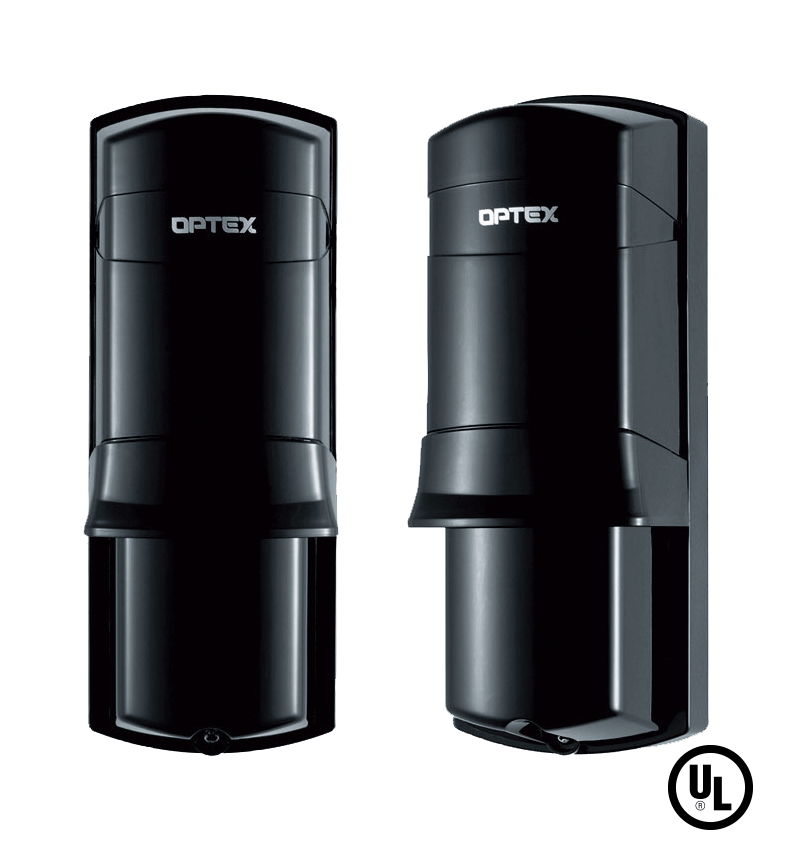

Optex AX-200TF 60m Active IR Sensor

Optex AX-200TF 60m Active IR Sensor

Sale Sold out
Shipping calculated at checkout.

Product Details

The AX-200TF is a 60m outdoor hardwired active infrared (AIR) beam set designed to protect driveways, open areas and small perimeters. The dual beam set features four selectable channels making it easy to stack in beam towers. The AX-200TF can also be connected to an IP network when used in conjunction with the IP/POE (Power over Ethernet ) module PIE-1.

Easy alignment Weather resistant
A perfect alignment between transmitter and receiver is key to optimise the operation of the active beams. To make the optical alignment easier, the AX-200TF features a LED alignment indicator. IP65 rated, the AX-100TF housing has been designed to resist against both water and dust. The hood featured on the front cover is to prevent frost from attaching to the cover and potentially affecting the signal power. The beam is also fitted with specific relay and absorber to protect it from lightning surges.

Applications

  • Perimeter
  • Garden
  • Driveway

Key Features

  • Hardwired dual beam set
  • Alignment LED tool
  • Stackable (channel selection)
  • Lightning protection
Product Specifications:
Model AX-200TF
Maximum detection range 60m
Maximum arrival range 600m
Selectable beam frequencies 4 channel
Interruption period Selectable between 50, 100, 250, and 500m sec.
Power supply 10.5 - 28V DC
Current consumption (transmitter + receiver) 48mA (max.)
Alarm period 2 sec. (±1) nominal
Alarm output N.C./N.O. 28V DC 0.2A max.
Tamper switch N.C. opens when cover is removed at 28V DC, 0.2A max.
Operating temperature -35°C to +60°C / Use the optional heating unit (HU-3) under the environment of -25°C or less minus.
Environmental humidity 95% max.
Alignment angle ±90° Horizontal, ±5° Vertical
Mounting Wall and pole mounting
Weight (transmitter+receiver) 700g
Dimensions (H x W x D) 170mm x 65mm x 69.5mm
Weatherproof IP65
