Detec AS - A Safe Choice

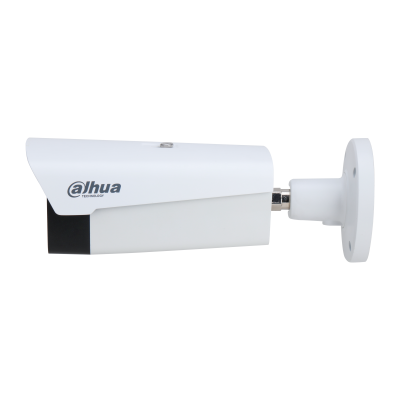

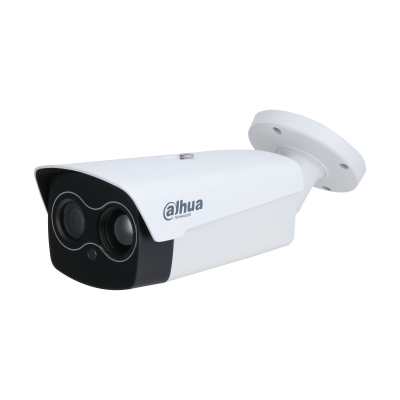

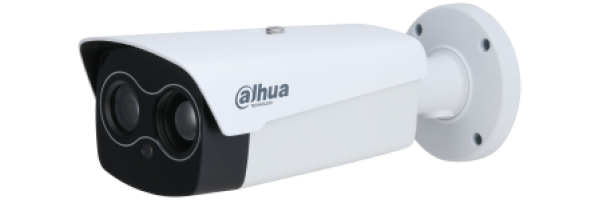

Detec DTC-5641-23-RAD, 4MP, IP67, IR80m,640x512 (19 mm), 22.9° x 18.4°, 50 Hz/25fps

Detec DTC-5641-23-RAD, 4MP, IP67, IR80m,640x512 (19 mm), 22.9° x 18.4°, 50 Hz/25fps

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.

Key Features

Download

Heat detection and alarm, tripwire, intrusion, and target filtering
1/1.8" 4Megapixel progressive scan (CMOS) 50 Hz/25 fps
H.265, Two-way Audio, I/O PoE, Micro SD
Vanadium oxide uncooled focal plane detector
RAD-SENSOR
Temperature measurement range of –20 °C to +550 °C

Approved for use with

DETEC NEXT FIRE

Radiometric thermal camera module with both temperature and radiant energy measurement customized for use with Detec
Next RAD Camera License on Detec Next VMS
Edge analysis on camera to be used with other types of Detec
Next camera licenses.
Reliable temperature exception alarm function
Advanced fire detection algorithm
Very early notification of potential fires to the fire service/control center, for use at i.e:
 - Detection in larger wooden building areas
 - Preventive fire detection and monitoring at garbage facilities

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640 (H) × 512 (V)

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

≤35 mK (@f/1.0)

Field of View

19 mm: H: 22.9°; V: 18.4°

Thermal Focus Control

Fixed-focal

Close Focus Distance

19 mm: 5.5m

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

≥1100 TVL

Min. Illumination

Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio

>55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp;
street lamp; natural

Defog

Electronic defog

WDR

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Fixed

Image Flip

180°; Mirror
